5 Stk. an Lager

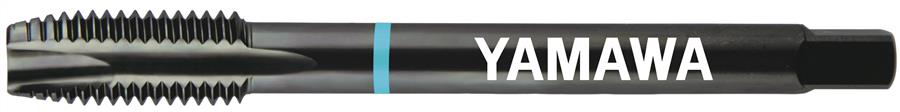

Tap PO-VA 376 ISO2X M20X2.5
CHF 67.50*
Item original number:
PG020RBGEX
Item number:
811874
Technical documents:
Delivery time: 1-3 days
Product information "Tap PO-VA 376 ISO2X M20X2.5"
| Area of application: | M1 Stainless steel ≤700 N/mm² M2 Stainless steel ≤750 N/mm² M3 Stainless steel ≤850 N/mm² P1 Steel ≤500 N/mm² P2 Steel 500-700 N/mm² P3 Steel 600-800 N/mm² P4 Steel 800-1000 N/mm² |
|---|---|
|
Area of application (●ideal / ◌appropriate): |
● M1 Stainless steel ≤700 N/mm² ● M2 Stainless steel ≤750 N/mm² ● M3 Stainless steel ≤850 N/mm² ● P1 Steel ≤500 N/mm² ● P2 Steel 500-700 N/mm² ● P3 Steel 600-800 N/mm² ● P4 Steel 800-1000 N/mm² |
| Chamfer length: | 4.5 |
| Coating: | No |
| Coating / Suface: | Vaporisiert |
| Coolant hole: | No |
| Direction of movement: | Right hand type |
| Hole type: | Through-hole |
|
Length cutting edge (l1): |
33 |
| Length square: | 15 |
|
Length total (L): |
140 |
| M1 Stainless steel < 700 N/mm²: | 10 m/min |
| M2 Stainless steel < 750 N/mm²: | 10 m/min |
| M3 Stainless steel < 850 N/mm²: | 10 m/min |
| Manufacturer: | Yamawa |
|
No. of cutting edges (Z): |
3 |
| P1 Steel < 500 N/mm²: | 10 m/min |
| P2 Steel 500-700 N/mm²: | 10 m/min |
| P3 Steel 600-800 N/mm²: | 5 m/min |
| P4 Steel 800-1000 N/mm²: | 5 m/min |
| Product line: | PO-VA |
| Shaft type: | Gew. Bohrer DIN 376 |
| Size: | M20 |
| Size square: | 12 |
| Substrate: | HSS |
|
Thread pitch (P): |
2.5 |
| Thread size: | 20 |
| Thread standard: | M Metric ISO-thread |
| Tool tolerance: | ISO2X |
| Tool type: | Taps |
|
Ø Shaft (d): |
16 |
