5 Stk. an Lager

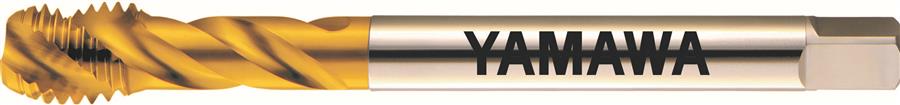

Tap SP Coating 371 ISO2 M 8X1.25
CHF 22.78*
Item original number:
96408.0TI
Item number:
812031
Technical documents:
Delivery time: 1-3 days
Product information "Tap SP Coating 371 ISO2 M 8X1.25"
| Area of application: | M1 Stainless steel ≤700 N/mm² M2 Stainless steel ≤750 N/mm² M3 Stainless steel ≤850 N/mm² N1 Aluminium alloys ≤ 12% Si N2 Aluminium alloys > 12% Si N3 Copper N4 Bronze and brass P1 Steel ≤500 N/mm² P2 Steel 500-700 N/mm² P3 Steel 600-800 N/mm² P4 Steel 800-1000 N/mm² P5 Steel 900-1200 N/mm² |
|---|---|
|
Area of application (●ideal / ◌appropriate): |
◌ M1 Stainless steel ≤700 N/mm² ◌ M2 Stainless steel ≤750 N/mm² ◌ M3 Stainless steel ≤850 N/mm² ◌ N1 Aluminium alloys ≤ 12% Si ◌ N2 Aluminium alloys > 12% Si ◌ N3 Copper ◌ N4 Bronze and brass ◌ P5 Steel 900-1200 N/mm² ● P1 Steel ≤500 N/mm² ● P2 Steel 500-700 N/mm² ● P3 Steel 600-800 N/mm² ● P4 Steel 800-1000 N/mm² |
| Chamfer length: | 2.5 |
| Coating: | Yes |
| Coating / Suface: | TiN |
| Coolant hole: | No |
| Direction of movement: | Right hand type |
| Hole type: | Blind-hole |
|
Length cutting edge (l1): |
12 |
|
Length effective (l2): |
35 |
| Length square: | 9 |
|
Length total (L): |
90 |
| Manufacturer: | Yamawa |
|
No. of cutting edges (Z): |
3 |
| P1 Steel < 500 N/mm²: | 10-20 m/min |
| P2 Steel 500-700 N/mm²: | 10-20 m/min |
| P3 Steel 600-800 N/mm²: | 10-20 m/min |
| P4 Steel 800-1000 N/mm²: | 10-20 m/min |
| Product line: | SP Coating |
| Shaft type: | Gew. Bohrer DIN 371 |
| Size: | M8 |
| Size square: | 6.2 |
| Substrate: | HSS |
|
Thread pitch (P): |
1.25 |
| Thread size: | 8 |
| Thread standard: | M Metric ISO-thread |
| Tool tolerance: | ISO2 |
| Tool type: | Taps |
|
Ø Shaft (d): |
8 |
