6 Stk. an Lager

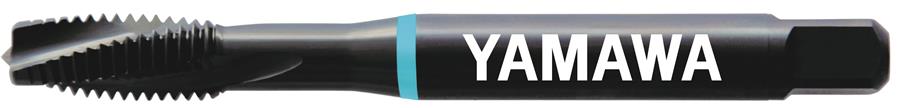

Tap ZEN-B 371 ISO2X M5X0.8
CHF 32.34*
Item original number:
SD5.0KBJPX
Item number:
812312
Technical documents:
Delivery time: 1-3 days
Product information "Tap ZEN-B 371 ISO2X M5X0.8"
| Area of application: | M1 Stainless steel ≤700 N/mm² M2 Stainless steel ≤750 N/mm² M3 Stainless steel ≤850 N/mm² M4 Stainless steel ≤950 N/mm² M5 Stainless steel ≤1250 N/mm² P1 Steel ≤500 N/mm² P2 Steel 500-700 N/mm² P3 Steel 600-800 N/mm² P4 Steel 800-1000 N/mm² P5 Steel 900-1200 N/mm² P6 Steel 1200-1600 N/mm² S1 HRSA ≤25 HRC S2 HRSA 25-35 HRC |
|---|---|
|
Area of application (●ideal / ◌appropriate): |
◌ M4 Stainless steel ≤950 N/mm² ◌ M5 Stainless steel ≤1250 N/mm² ◌ P1 Steel ≤500 N/mm² ◌ P2 Steel 500-700 N/mm² ◌ P5 Steel 900-1200 N/mm² ● M1 Stainless steel ≤700 N/mm² ● M2 Stainless steel ≤750 N/mm² ● M3 Stainless steel ≤850 N/mm² ● P3 Steel 600-800 N/mm² ● P4 Steel 800-1000 N/mm² ● S1 HRSA ≤25 HRC ● S2 HRSA 25-35 HRC |
| Chamfer length: | 3 |
| Coating: | No |
| Coating / Suface: | Vaporisiert |
| Coolant hole: | No |
| Direction of movement: | Right hand type |
| Hole type: | Blind-hole |
|
Length cutting edge (l1): |
14 |
|
Length effective (l2): |
25 |
| Length square: | 8 |
|
Length total (L): |
70 |
| M1 Stainless steel < 700 N/mm²: | 5-15 m/min |
| M2 Stainless steel < 750 N/mm²: | 5-15 m/min |
| M3 Stainless steel < 850 N/mm²: | 5-15 m/min |
| Manufacturer: | Yamawa |
|
No. of cutting edges (Z): |
3 |
| P3 Steel 600-800 N/mm²: | 5-15 m/min |
| P4 Steel 800-1000 N/mm²: | 5-15 m/min |
| Product line: | ZEN-B |
| S1 HRSA < 25 HRC: | 5-10 m/min |
| S2 HRSA 25-35 HRC: | 5-10 m/min |
| Shaft type: | Gew. Bohrer DIN 371 |
| Size: | M5 |
| Size square: | 4.9 |
| Substrate: | HSS-PM |
|
Thread pitch (P): |
0.8 |
| Thread size: | 5 |
| Thread standard: | M Metric ISO-thread |
| Tool tolerance: | ISO2X |
| Tool type: | Taps |
|
Ø Shaft (d): |
6 |
