Tap VUSP Z-PRO ISO2X M3X0.5
CHF 29.64*
Item original number:
3101101035
Item number:
826643
Technical documents:
Delivery time: 1-3 days
Product information "Tap VUSP Z-PRO ISO2X M3X0.5"
| Area of application: | K2 Nodular cast iron 150-350 HB M1 Stainless steel ≤700 N/mm² M2 Stainless steel ≤750 N/mm² N1 Aluminium alloys ≤ 12% Si N2 Aluminium alloys > 12% Si N3 Copper N4 Bronze and brass P1 Steel ≤500 N/mm² P2 Steel 500-700 N/mm² P3 Steel 600-800 N/mm² P4 Steel 800-1000 N/mm² |
|---|---|
|
Area of application (●ideal / ◌appropriate): |
◌ K2 Nodular cast iron 150-350 HB ◌ M2 Stainless steel ≤750 N/mm² ◌ N3 Copper ◌ N4 Bronze and brass ● M1 Stainless steel ≤700 N/mm² ● N1 Aluminium alloys ≤ 12% Si ● N2 Aluminium alloys > 12% Si ● P1 Steel ≤500 N/mm² ● P2 Steel 500-700 N/mm² ● P3 Steel 600-800 N/mm² ● P4 Steel 800-1000 N/mm² |
| Chamfer length: | 2.5 |
| Coating: | Yes |
| Coating / Suface: | Beschichtet |
| Coolant hole: | No |
| Direction of movement: | Right hand type |
| Hole type: | Blind-hole |
| K1 Grey cast iron 150-250 HB: | 10-20 m/min |
|

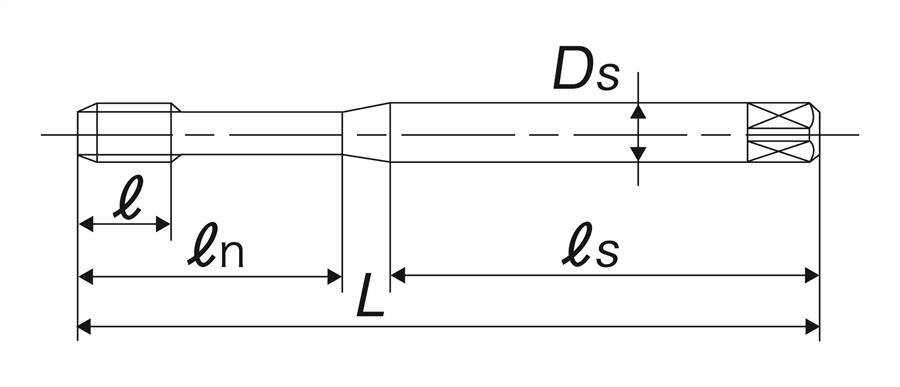

Length cutting edge (l1): |
5 |
|
Length effective (l2): |
18 |
| Length square: | 6 |
|
Length total (L): |
56 |
| M1 Stainless steel < 700 N/mm²: | 5-15 m/min |
| M2 Stainless steel < 750 N/mm²: | 5-10 m/min |
| Manufacturer: | Yamawa |
| N1 Aluminium alloys ≤ 12% Si: | 10-30 m/min |
| N2 Aluminium alloys > 12% Si: | 10-30 m/min |
| N3 Copper: | 10-25 m/min |
| N4 Bronze and brass: | 10-20 m/min |
|
No. of cutting edges (Z): |
3 |
| P1 Steel < 500 N/mm²: | 10-25 m/min |
| P2 Steel 500-700 N/mm²: | 10-25 m/min |
| P3 Steel 600-800 N/mm²: | 10-25 m/min |
| P4 Steel 800-1000 N/mm²: | 10-20 m/min |
| Product line: | VUSP |
| Shaft type: | Gew. Bohrer DIN 371 |
| Size: | M3 |
| Size square: | 2.7 |
| Substrate: | HSS-PM |
|
Thread pitch (P): |
0.5 |
| Thread size: | 3 |
| Thread standard: | M Metric ISO-thread |
| Tool tolerance: | ISO2X |
| Tool type: | Taps |
|
Ø Shaft (d): |
3.5 |
