5 Stk. an Lager

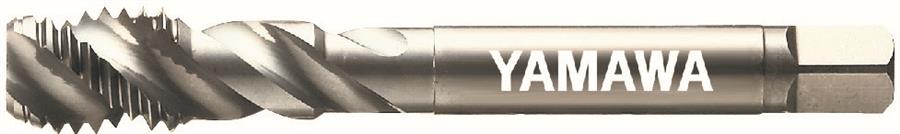

Tap SP 371 ISO2 M3X0.5
CHF 14.66*
Item original number:
SD3.0GANEB
Item number:
811943
Technical documents:
Delivery time: 1-3 days
Product information "Tap SP 371 ISO2 M3X0.5"
| Area of application: | N1 Aluminium alloys ≤ 12% Si N2 Aluminium alloys > 12% Si N3 Copper N4 Bronze and brass P1 Steel ≤500 N/mm² P2 Steel 500-700 N/mm² P3 Steel 600-800 N/mm² P4 Steel 800-1000 N/mm² |
|---|---|
|
Area of application (●ideal / ◌appropriate): |
◌ N1 Aluminium alloys ≤ 12% Si ◌ N2 Aluminium alloys > 12% Si ◌ N3 Copper ◌ N4 Bronze and brass ◌ P1 Steel ≤500 N/mm² ◌ P3 Steel 600-800 N/mm² ◌ P4 Steel 800-1000 N/mm² ● P2 Steel 500-700 N/mm² |
| Chamfer length: | 2.5 |
| Coating: | No |
| Coating / Suface: | Unbeschichtet |
| Coolant hole: | No |
| Direction of movement: | Right hand type |
| Hole type: | Blind-hole |
|
Length cutting edge (l1): |
9 |
|
Length effective (l2): |
18 |
| Length square: | 6 |
|
Length total (L): |
56 |
| Manufacturer: | Yamawa |
|
No. of cutting edges (Z): |
3 |
| P2 Steel 500-700 N/mm²: | 5-10 m/min |
| Product line: | SP |
| Shaft type: | Gew. Bohrer DIN 371 |
| Size: | M3 |
| Size square: | 2.7 |
| Substrate: | HSS |
|
Thread pitch (P): |
0.5 |
| Thread size: | 3 |
| Thread standard: | M Metric ISO-thread |
| Tool tolerance: | ISO2 |
| Tool type: | Taps |
|
Ø Shaft (d): |
3.5 |
