5 Stk. an Lager

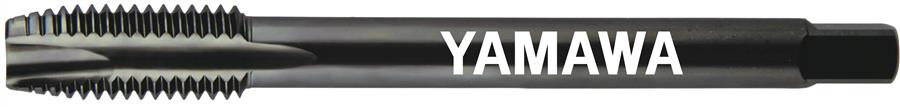

Tap PO OX 371 ISO2 M5X0.8
CHF 15.39*
Item original number:
PD5.0KANEX
Item number:
811813
Technical documents:
Delivery time: 1-3 days
Product information "Tap PO OX 371 ISO2 M5X0.8"
| Area of application: | M1 Stainless steel ≤700 N/mm² M2 Stainless steel ≤750 N/mm² M3 Stainless steel ≤850 N/mm² P1 Steel ≤500 N/mm² P2 Steel 500-700 N/mm² P3 Steel 600-800 N/mm² |
|---|---|
|
Area of application (●ideal / ◌appropriate): |
◌ M1 Stainless steel ≤700 N/mm² ◌ M2 Stainless steel ≤750 N/mm² ◌ M3 Stainless steel ≤850 N/mm² ◌ P3 Steel 600-800 N/mm² ● P1 Steel ≤500 N/mm² ● P2 Steel 500-700 N/mm² |
| Chamfer length: | 5 |
| Coating: | No |
| Coating / Suface: | Vaporisiert |
| Coolant hole: | No |
| Direction of movement: | Right hand type |
| Hole type: | Through-hole |
|
Length cutting edge (l1): |
14 |
|
Length effective (l2): |
25 |
| Length square: | 8 |
|
Length total (L): |
70 |
| Manufacturer: | Yamawa |
|
No. of cutting edges (Z): |
3 |
| P1 Steel < 500 N/mm²: | 5-10 m/min |
| P2 Steel 500-700 N/mm²: | 5-10 m/min |
| Product line: | PO OX |
| Shaft type: | Gew. Bohrer DIN 371 |
| Size: | M5 |
| Size square: | 4.9 |
| Substrate: | HSS |
|
Thread pitch (P): |
0.8 |
| Thread size: | 5 |
| Thread standard: | M Metric ISO-thread |
| Tool tolerance: | ISO2 |
| Tool type: | Taps |
|
Ø Shaft (d): |
6 |
