5 Stk. an Lager

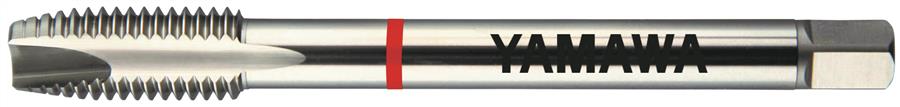

Tap EH-PO 376 ISO2X M12X1.75
CHF 42.22*
Item original number:
PG012PBDCB
Item number:
811220
Technical documents:
Delivery time: 1-3 days
Product information "Tap EH-PO 376 ISO2X M12X1.75"
| Area of application: | P5 Steel 900-1200 N/mm² P6 Steel 1200-1600 N/mm² |
|---|---|
|
Area of application (●ideal / ◌appropriate): |
● H5 Hardened white cast 48-55 HRC ● P5 Steel 900-1200 N/mm² ● P6 Steel 1200-1600 N/mm² |
| Chamfer length: | 4.5 |
| Coating: | No |
| Coating / Suface: | Unbeschichtet |
| Coolant hole: | No |
| Direction of movement: | Right hand type |
| H5 Hardened white cast 48-55 HRC: | 2-5 m/min |
| Hole type: | Through-hole |
|
Length cutting edge (l1): |
26 |
| Length square: | 10 |
|
Length total (L): |
110 |
| Manufacturer: | Yamawa |
|
No. of cutting edges (Z): |
3 |
| P5 Steel 900-1200 N/mm²: | 2-5 m/min |
| P6 Steel 1200-1600 N/mm²: | 2-5 m/min |
| Product line: | EH-PO |
| Shaft type: | Gew. Bohrer DIN 376 |
| Size: | M12 |
| Size square: | 7 |
| Substrate: | HSS-Co |
|
Thread pitch (P): |
1.75 |
| Thread size: | 12 |
| Thread standard: | M Metric ISO-thread |
| Tool tolerance: | ISO2X |
| Tool type: | Taps |
|
Ø Shaft (d): |
9 |
