13 Stk. an Lager
Corner Radius End Mill 4SUR-060-R02-150-660
Regular price:
CHF 21.22
Item original number:
4SUR-060-R02-150-660
Item number:
802635
Technical documents:
Delivery time: 1-3 days
Product information "Corner Radius End Mill 4SUR-060-R02-150-660"
Geometry design (unequal index) to reduce chattering. Unique flute design improves chip flow. Excellent surface roughness with 4 flutes, smooth flow with big pocket. Great for alloy steels, SUS, titanium, Inconel, and hard-to-cut materials.
| Area of application: | M1 Stainless steel ≤700 N/mm²M2 Stainless steel ≤750 N/mm²M3 Stainless steel ≤850 N/mm²M4 Stainless steel ≤950 N/mm²M5 Stainless steel ≤1250 N/mm²N3 CopperP1 Steel ≤500 N/mm²P2 Steel 500-700 N/mm²P3 Steel 600-800 N/mm²P4 Steel 800-1000 N/mm²P5 Steel 900-1200 N/mm²P6 Steel 1200-1600 N/mm²S1 HRSA ≤25 HRCS2 HRSA 25-35 HRCS3 HRSA 35-45 HRCS4 Low alloy titaniumS5 High alloy titanium |
|---|---|
|
Area of application (●ideal / ◌appropriate): |
◌ P5 Steel 900-1200 N/mm²◌ P6 Steel 1200-1600 N/mm²◌ S2 HRSA 25-35 HRC◌ S3 HRSA 35-45 HRC● M1 Stainless steel ≤700 N/mm²● M2 Stainless steel ≤750 N/mm²● M3 Stainless steel ≤850 N/mm²● M4 Stainless steel ≤950 N/mm²● M5 Stainless steel ≤1250 N/mm²● N3 Copper● P1 Steel ≤500 N/mm²● P2 Steel 500-700 N/mm²● P3 Steel 600-800 N/mm²● P4 Steel 800-1000 N/mm²● S1 HRSA ≤25 HRC● S4 Low alloy titanium● S5 High alloy titanium |
| Coating / Suface: | TiAlN |
| Coolant hole: | No |
|

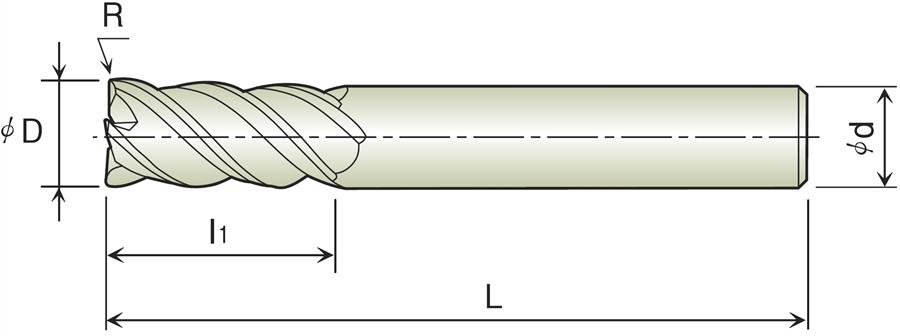

Corner radius (R): |
0.2 |
| Corner radius tolerance: | +0.005/-0.005 |
|
Helix angle (a1): |
43 |
|
Length cutting edge (l1): |
15 |
|
Length total (L): |
60 |
| Manufacturer: | Hansong |
|
No. of cutting edges (Z): |
4 (unequal type) |
| Product line: | S-PRO |
| Shaft type: | h5 cylindrical shank DIN6535 HA |
| Substrate: | VHM |
| Tool form: | Corner radius |
| Tool type: | End mill |
|
Ø Cutting edge (D): |
6 |
| Ø Cutting edge tolerance: | +0.000/-0.015 |
|
Ø Shaft (d): |
6 |
