16 Stk. an Lager
Carbide drill TYPHOON 355HPU Ø5.00mm
CHF 45.66*
Item original number:
355HPU0500
Item number:
813903
Technical documents:
Delivery time: 1-3 days
Product information "Carbide drill TYPHOON 355HPU Ø5.00mm"
as long as stock
| Area of application: | K1 Grey cast iron 150-250 HB K2 Nodular cast iron 150-350 HB K3 Austenitic cast iron ≤260 HB K4 ADI cast iron 250-500 HB M1 Stainless steel ≤700 N/mm² M2 Stainless steel ≤750 N/mm² M3 Stainless steel ≤850 N/mm² M4 Stainless steel ≤950 N/mm² M5 Stainless steel ≤1250 N/mm² N1 Aluminium alloys ≤ 12% Si N2 Aluminium alloys > 12% Si N3 Copper N4 Bronze and brass N5 Plastic materials N6 Fiber and composites P1 Steel ≤500 N/mm² P2 Steel 500-700 N/mm² P3 Steel 600-800 N/mm² P4 Steel 800-1000 N/mm² P5 Steel 900-1200 N/mm² P6 Steel 1200-1600 N/mm² S1 HRSA ≤25 HRC S2 HRSA 25-35 HRC S3 HRSA 35-45 HRC S4 Low alloy titanium S5 High alloy titanium |
|---|---|
|
Area of application (●ideal / ◌appropriate): |
◌ N1 Aluminium alloys ≤ 12% Si ◌ N2 Aluminium alloys > 12% Si ◌ N3 Copper ◌ N4 Bronze and brass ◌ N5 Plastic materials ◌ N6 Fiber and composites ● K1 Grey cast iron 150-250 HB ● K2 Nodular cast iron 150-350 HB ● K3 Austenitic cast iron ≤260 HB ● K4 ADI cast iron 250-500 HB ● M1 Stainless steel ≤700 N/mm² ● M2 Stainless steel ≤750 N/mm² ● M3 Stainless steel ≤850 N/mm² ● M4 Stainless steel ≤950 N/mm² ● M5 Stainless steel ≤1250 N/mm² ● P1 Steel ≤500 N/mm² ● P2 Steel 500-700 N/mm² ● P3 Steel 600-800 N/mm² ● P4 Steel 800-1000 N/mm² ● P5 Steel 900-1200 N/mm² ● P6 Steel 1200-1600 N/mm² ● S1 HRSA ≤25 HRC ● S2 HRSA 25-35 HRC ● S3 HRSA 35-45 HRC ● S4 Low alloy titanium ● S5 High alloy titanium |
| Coating / Suface: | PV250 |
| Coolant hole: | Yes |
| Drilling depth: | 5 |
| Friction coefficient: | 0.3 |
| Hardness: | 3300 |
|

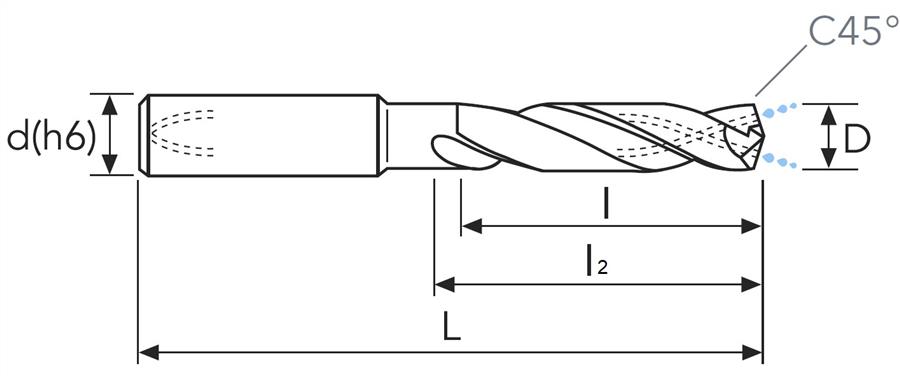

Helix angle (a1): |
30 |
|
Lenght helix (l): |
35 |
|
Length effective (l2): |
44 |
|
Length total (L): |
82 |
| Manufacturer: | Osawa |
| Max. working temperature: | 900 |
| Point angles: | 140 |
| Product line: | 355HPU |
| Shaft type: | h6 cylindrical shank DIN6535 HA |
| Substrate: | Micro Grain |
| Thickness: | 2.5 - 3.5 |
|
Ø Cutting edge (D): |
5 |
| Ø Cutting edge tolerance: | +0.016/+0.004 |
|
Ø Shaft (d): |
6 |
