ATS-Grooving inserts TE14F-150-6501ER-GA AP5020
Regular price:
CHF 32.55
Item original number:
TE14F-150-6501ER-GA AP5020
Item number:
364175
Technical documents:
Delivery time: 1-3 days
Product information "ATS-Grooving inserts TE14F-150-6501ER-GA AP5020"
| Area of application: | M1 Stainless steel ≤700 N/mm²M2 Stainless steel ≤750 N/mm²M3 Stainless steel ≤850 N/mm²M4 Stainless steel ≤950 N/mm²M5 Stainless steel ≤1250 N/mm²N1 Aluminium alloys ≤ 12% SiN2 Aluminium alloys > 12% SiN3 CopperN4 Bronze and brassN5 Plastic materialsN6 Fiber and compositesP1 Steel ≤500 N/mm²P2 Steel 500-700 N/mm²P3 Steel 600-800 N/mm²P4 Steel 800-1000 N/mm²P5 Steel 900-1200 N/mm²P6 Steel 1200-1600 N/mm²S1 HRSA ≤25 HRCS2 HRSA 25-35 HRCS3 HRSA 35-45 HRCS4 Low alloy titaniumS5 High alloy titanium |
|---|---|
|
Area of application (●ideal / ◌appropriate): |
◌ M1 Stainless steel ≤700 N/mm²◌ M2 Stainless steel ≤750 N/mm²◌ M3 Stainless steel ≤850 N/mm²◌ M4 Stainless steel ≤950 N/mm²◌ M5 Stainless steel ≤1250 N/mm²◌ N1 Aluminium alloys ≤ 12% Si◌ N2 Aluminium alloys > 12% Si◌ N3 Copper◌ N4 Bronze and brass◌ N6 Fiber and composites◌ S1 HRSA ≤25 HRC◌ S2 HRSA 25-35 HRC◌ S3 HRSA 35-45 HRC◌ S4 Low alloy titanium◌ S5 High alloy titanium● P1 Steel ≤500 N/mm²● P2 Steel 500-700 N/mm²● P3 Steel 600-800 N/mm²● P4 Steel 800-1000 N/mm²● P5 Steel 900-1200 N/mm²● P6 Steel 1200-1600 N/mm² |

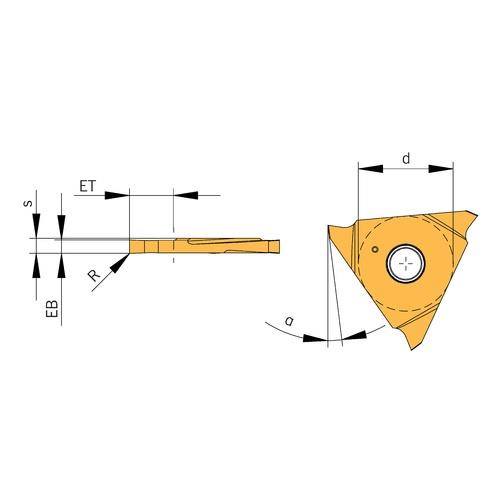

| Clearance angle: | 7 |
| Cutting Direction R L N: | R |
| Grade: | AP5020 |
| Insert thickness: | 2.25 |
| Length of main cutting edge: | 6.5 |
| Manufacturer: | Arno |
| Product line: | ATS-System |
| Puncture width: | 1.5 |
| Substrate: | VHM |
| Tolerance groove width: | ± 0.02 |
