20 Stk. an Lager
ATS-Grooving inserts TE14F-150-3001EL-GA AP5020
CHF 27.35*
Item original number:
TE14F-150-3001EL-GA AP5020
Item number:
816190
Technical documents:
Delivery time: 1-3 days
Product information "ATS-Grooving inserts TE14F-150-3001EL-GA AP5020"
| Area of application: | M1 Stainless steel ≤700 N/mm² M2 Stainless steel ≤750 N/mm² M3 Stainless steel ≤850 N/mm² M4 Stainless steel ≤950 N/mm² M5 Stainless steel ≤1250 N/mm² N1 Aluminium alloys ≤ 12% Si N2 Aluminium alloys > 12% Si N3 Copper N4 Bronze and brass N5 Plastic materials N6 Fiber and composites P1 Steel ≤500 N/mm² P2 Steel 500-700 N/mm² P3 Steel 600-800 N/mm² P4 Steel 800-1000 N/mm² P5 Steel 900-1200 N/mm² P6 Steel 1200-1600 N/mm² S1 HRSA ≤25 HRC S2 HRSA 25-35 HRC S3 HRSA 35-45 HRC S4 Low alloy titanium S5 High alloy titanium |
|---|---|
|
Area of application (●ideal / ◌appropriate): |
◌ M1 Stainless steel ≤700 N/mm² ◌ M2 Stainless steel ≤750 N/mm² ◌ M3 Stainless steel ≤850 N/mm² ◌ M4 Stainless steel ≤950 N/mm² ◌ M5 Stainless steel ≤1250 N/mm² ◌ N1 Aluminium alloys ≤ 12% Si ◌ N2 Aluminium alloys > 12% Si ◌ N3 Copper ◌ N4 Bronze and brass ◌ N6 Fiber and composites ◌ S1 HRSA ≤25 HRC ◌ S2 HRSA 25-35 HRC ◌ S3 HRSA 35-45 HRC ◌ S4 Low alloy titanium ◌ S5 High alloy titanium ● P1 Steel ≤500 N/mm² ● P2 Steel 500-700 N/mm² ● P3 Steel 600-800 N/mm² ● P4 Steel 800-1000 N/mm² ● P5 Steel 900-1200 N/mm² ● P6 Steel 1200-1600 N/mm² |

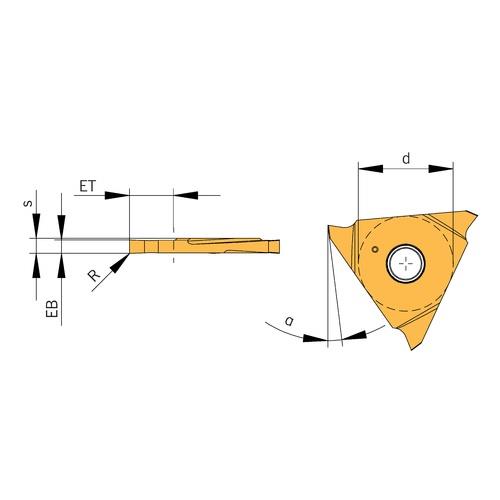

| Clearance angle: | 7 |
| Cutting Direction R L N: | L |
| Grade: | AP5020 |
| Insert thickness: | 2.25 |
| Length of main cutting edge: | 6.5 |
| Manufacturer: | Arno |
| Product line: | ATS-System |
| Puncture width: | 1.5 |
| Substrate: | VHM |
| Tolerance groove width: | ± 0.02 |
